NL Module Coalescing Filters

Capacity Range: 125-10000 cfm (3.5-283.2 m3/min) Filtration Grades: High efficiency Pressure Drop: 0.5 psig (0.03 barg) Maximum Operating Pressure: 150 psig (10.3 barg) Maximum Operating Temperature: 125°F (52°C) Minimum Operating Temperature: 34°F (1°C) Element Life: 10 years

Features

• Efficient Equipment Protection: High-efficiency particulate filtration to 0.5 ppm, > 3 microns at 100%, between 0.1 to 3 microns at 99.98%

• Lower Energy Use: Low pressure drop design saves on energy costs and provides an economical drying solution for your compressed air needs

• Extend Equipment Life: High-quality, maintenance-free filters extend element life up to 15 years

• Maximize Uptime: Reduces the effects of catastrophic air/oil separator failures

• Effective Operation: Works on all common mineral and synthetic lubricants

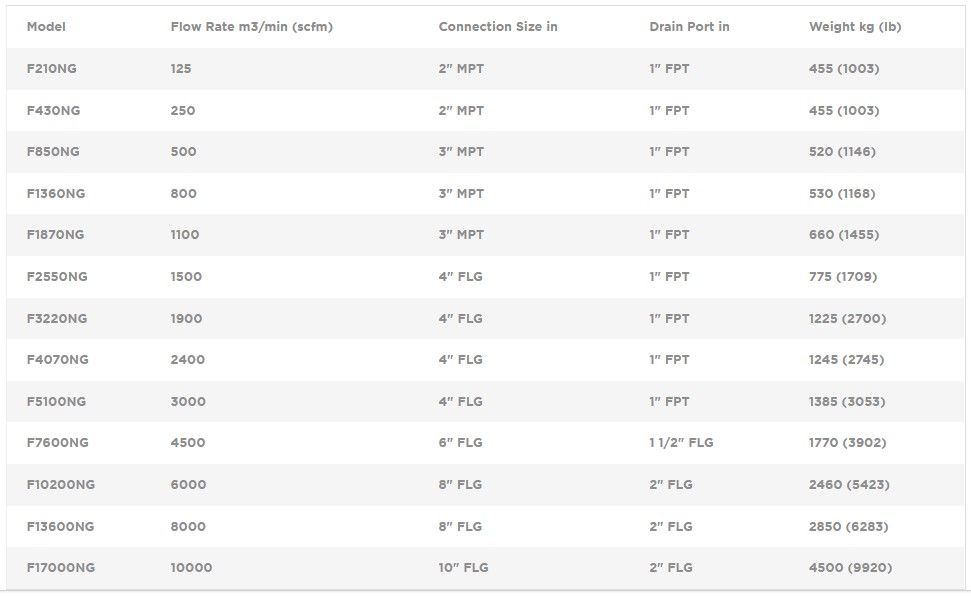

Model specifications
